BS36, BS361 Single Door Controller
  • Product overview:

    [Features]

    Single door controller, control IN/OUT of one door

    Storage Capacity up to 10,000 cards and 10,000  transactions

    Standalone Operation or Communicate with PC via RS-232, RS-485 or TCP/IP (via TCP/IP converter)

    Running on 16 bit CPU at 8MHz

    Support “Toggle Mode”, mainly use for controlling on/off of large-scale electrical equipment

    Support Anti-passback

    Support Anti-tailgating

    Support Arm/Disarm function

    Programmable Time zone / Pin Access Control

    Support any 3rd party external Wiegand Reader or Keypad Reader

    Recoverable up to the latest 10,000 transaction if back end system failure

    Support build-in reader module such as EM, Mifare, HID125 KHZ proximity , HID 13.56 MHz iCLASS, TI and CPU card

    CE Certified

  • Detail parameters:

    [Functional List]

    Function

    BS36

    BS361

    Card Open Door

    Present card to external or build-in wiegand reader

    Card+PIN Open Door

    Use with Controller with build-in reader

    Connect to external wiegand keypad reader: BS36K, BS361K

    Open door either by enter Security PIN or Card ID

    Open Door by Card + Pin: 4 digits PIN; By Security PIN: 8 digits PIN

    Security PIN Open Door

    Card ID Open Door

    Connect External

    Wiegand Reader

    Support any 26/ 34 bit wiegand card reader and free wiegand card reader

    Free Wiegand Setting

    Yes. Able to configure card battery low-voltage alarm when using long range reader

    Connect External

    Keypad Reader

    Wiegand keypad reader

    BS36K/BS361K keypad reader

    Connect External

    BS Fingerprint Reader

    Yes, via wiegand port

    Connection to PC

    Via RS232, RS485 or TCP/IP (require TCP/IP converter)

    Exit by Push Button

    Yes

    Door Force Open Alarm

    Yes

    Door Held Open Alarm

    1-255 seconds. Factory default is 5 seconds. Alarm output can be disable

    Add/Delete Card

    in standalone mode

    Yes

    Multi-card Verification

    Yes, up to 8 cards

    Keypad Open Door

    Through controller keypad.  Factory default is “No”.

    Wrong PIN Control

    During Card + PIN operation, if PIN enter 3 times incorrectly will disable

    the controller for 30 seconds

    Same Card Delay

    0-255 seconds. Factory default is 0 second.

    Time Zone Control

    32 set of time zone

    Holiday Control

    Yes

    Lost/Inhabit Card

    Yes

    Card Start and Expiry

    Date Validation

    Yes

    Door Auto Unlock by

    Timezone

    Yes

    Anti-passback

    Yes (Local or Global). Able to reset manually or by time

    Timing Event

    (Alarm Clock)

    Yes

    Alarm arming/disarm

    Yes

    Anti Tailgating

    Yes

    Time Error Correction

    Yes

    Card Number Output Byte

    1-4 bytes. Default is 4 bytes

    Card Number Display

    Format

    HEX, DEC, ABA, User Code. Default is DEC

    Communication Monitoring

    Yes

    Internal Buzzer Alarm

    Able to setup trigger alarm buzzer when door force open or door held open

    alarm. Factory default is “No”.

    PIN Control

    Able to setup Exit without PIN Control. Factory default is Yes.

    Timezone Control

    Able to set to Exit without Timezone Control. Factory default is Yes.

    Tamper Alarm

    Build-in tamper switch.  If device is opened, controller will send an alarm record to back end PC.

    Door Left Open Restore

    transaction

    Yes

    485 Comm Terminating

    Resistor

    Via jumper setting


    [Technical Specification]

    Parameter

    BS36

    BS361

    CPU

    16 bits,  8MHz

    RAM

    512K Bytes

    Flash

    256K Bytes

    Number of Door

    1

    Wiegand Reader Connect

    2

    TTL Alarm Input

    1

    Door Sensor

    1

    Exit Push button

    1

    TTL Alarm Output

    1, 5V/300mA

    Alarm Relay Output

    1, 12V/1A

    1, 12V/1A

    Door Relay Output

    1, 12V/1A

    1, 12V/1A

    Tamper Switch

    1

    Card Capacity

    10,000

    Record Capacity

    10,000

    Serial COM Port

    2, 1x485 connect to PC, 1x232 connect to serail printer or PC

    Baud Rate

    1200~19200 bps. Default is 19200 bps

    Controller ID Setting

    001~255.Default is 1

    Data Backup Battery

    Rechargeable. Without main power able to save the data up to 6 months

    Keypad

    4x4, Blue Backlight

    4x4, Blue Backlight

    LCD

    128x64 dots Graphical, White Backlight, Chinese, English

    128x64 dots Graphical, White Backlight, Chinese, English

    Buzzer

    1, audible sound able to distinguish valid and invalid card

    Power Supply

    9~30VDC, 300mA

    Operating Temperature

    -10~50

    Dimension

    131 x 84 x 32 mm

    131 x 131 x 32 mm

    Casing

    ABS flame-resistant

    Mounting

    Wall mount

    Wall mount


    [Model Selection]

    BS36 Series

    Model

    Description

    BS36-XXX

    Graphical display single door controller

    BS36-XXX-E

    Single door controller, build-in EM Card reader, range > 5cm

    BS36-XXX-M

    Single door controller, build-in Mifare Card reader, range > 2. 5c

    BS36-XXX-H

    Single door controller, build-in HID125 KHZ proximity Card reader, range > 2. 5cm

    BS36-XXX-T

    Single door controller, build-in ISO15693 (TI) Card reader, range > 2. 5cm

    BS36-XXX-C

    Single door controller, build-in CPU Card reader, range > 2. 5cm


    BS361 Series

    Model

    Description

    BS361-XXX

    Graphical display single door controller

    BS361-XXX-E

    Single door controller, build-in EM Card reader, range > 5cm

    BS361-XXX-M

    Single door controller, build-in Mifare Card reader, range > 2. 5cm

    BS361-XXX-H

    Single door controller, build-in HID125 KHZ proximityCard reader, range > 2. 5cm

    BS361-XXX-T

    Single door controller, build-in ISO15693 (TI) Card reader, range > 2. 5cm

    BS361-XXX-C

    Single door controller, build-in CPU Card reader, range > 2. 5cm

  • Installation mode:

    [Installation Measurement]

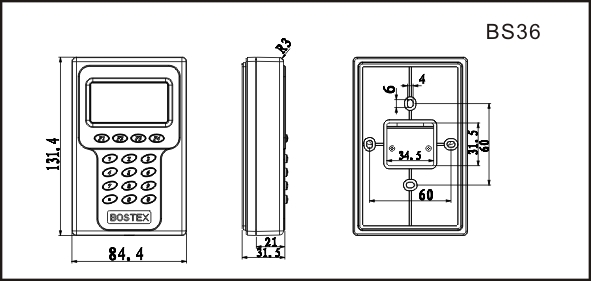

    BS36

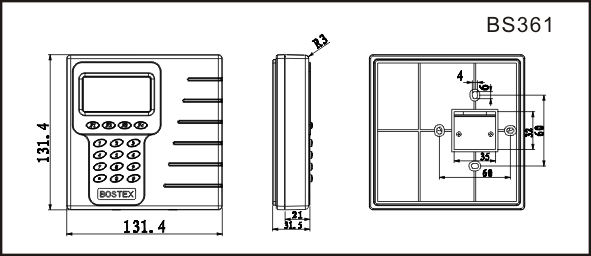

     BS361
